Milko Tool & Die Machinery List

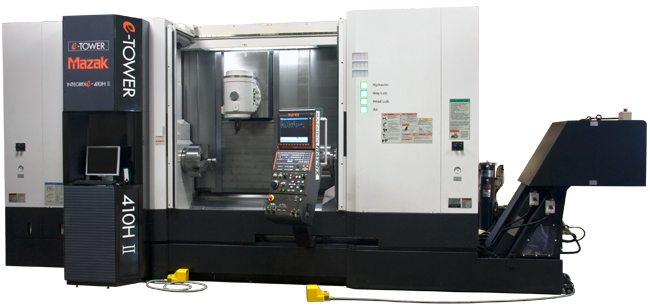

Mazak e410HSII Multi-Tasking Lathe


Features:
Dual chuck 4.4 thru bore, 60" center lines
Renishaw Probe
3D high speed milling
Mill turning
1000 psi coolant

Click pictures to enlarge

LB25II CNC LATHEOSP7000L-G control, color CRT, 10" hydraulic chuck, tailstock, LAP4, user task II, and all standard equipment.click to enlarge
OKUMA MX45VAE
VERTICAL MACHINING CENTER
CSP7000 control, SMW RT 315 indexer with servo control. 6000 rpm, user task II, helical cutting, sync-tap.Click to enlarge
OKUMA MC40VA
VERTICAL MACHINING CENTER
OSP7000M control, 6000 rpm, user task II, helical cutting, sync-tap with manual pallet changer.Click to enlarge
OKUMA MC4VAE CNC(3) Machining center with all standard equipment. SMW RT315HY with system 40 control indexer. Parlex P15-1850 presetter tooling. Table size 29.27 x 16.44, height 17.72.
OKUMA CNC LATHELS-N 10 OSP 3000 controller. Swing 49.21 distance between centers, 15 HPClick to enlarge
OKUMA CNC LATHELS-N 35 OSP 3000 controller. 2411 swing 80.00 distance between centers, 35 HP.Click to enlarge
OKUMA CNC LATHELC 30 OSP 3000 controller. 21.2611 swing, 30 HP.Click to enlarge
OKUMA CNC LATHELB 15 5000 controller. 12" swing.Click to enlarge
RAYCON EDMConventional - Electrode burning machine, 16 x 28 box - Burns 811 deep.
SODICK AP 500W / AWT
WIRE CUT EDM MACHINE
Table travel: X: 19.7", Y: 13.8", Z: 10.6", Maximum workpiece size: 27.5" x 19.7" x 10.2", Maximum workpiece weight: 1540 lbs., U-V stroke: 2.75" x 2.75", Taper angle: 15 in 4", Control: MK 21, 40 amps, Mfg. rated cutting speed: 22 - 24 sq" / hr.Click to enlarge
LATHES, SWING(5) Conventional, up to 16" and distance of 72"
MILLS(8) with digital readouts. Bridgeport type, up to 4911 table. KE-55 Makino CNC milling machine.Click to enlarge
GRINDERS(2) - 6 x 18 contour form grinder
(1) - 20" x 40" Okamoto ACC-DXV 20 surface grinder
Click to enlarge
SAWSBand saws with welder
(2) - Cut off saws, one with automatic feeder, holding length with 0.0150.
WELDERS(1) - Aluminum wire, Miller
(2) - Stainless steel stick wire, Miller
PLASMA CUTTERCuts up to 1/2" thick
CUTTER GRINDERDare
PANTOGRAPH-TORCHCuts up to 5" thick
DRILL PRESS(4) - Causing variable speed and gear driven.
HEAT TREAT FURNACES(2) - Can heat treat material sizes of 20" long, 8" tall and 11" wide.
PUNCH PRESS(1) - 45 ton
(1) - 16 ton
(1) - 14 ton
IRON WORKER(1) - 18 ton
MISCELLANEOUSRockwell tester
Durometer tester
Many precision hand tools
2000 OPTICAL COMPARATORDisplayed on video screen, digital readout, computing geometric calculations.
MITUTOYOPortable surface roughness tester.
INSPECTIONSPC - Statistical progress control, IF request, Mitutoyo DP-3 is capable of performing goino go discriminations of measurement data plotting histograms and constructing control charts.
